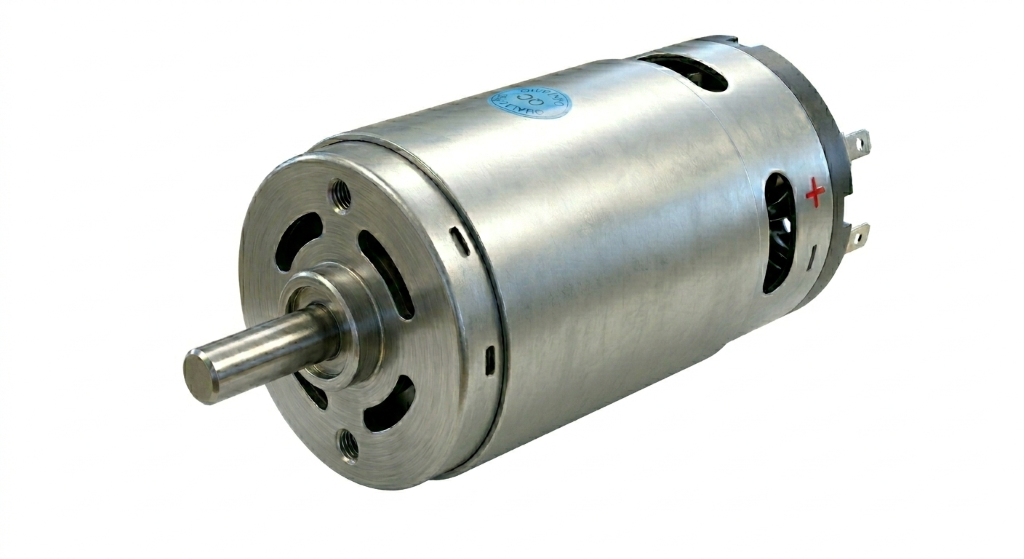

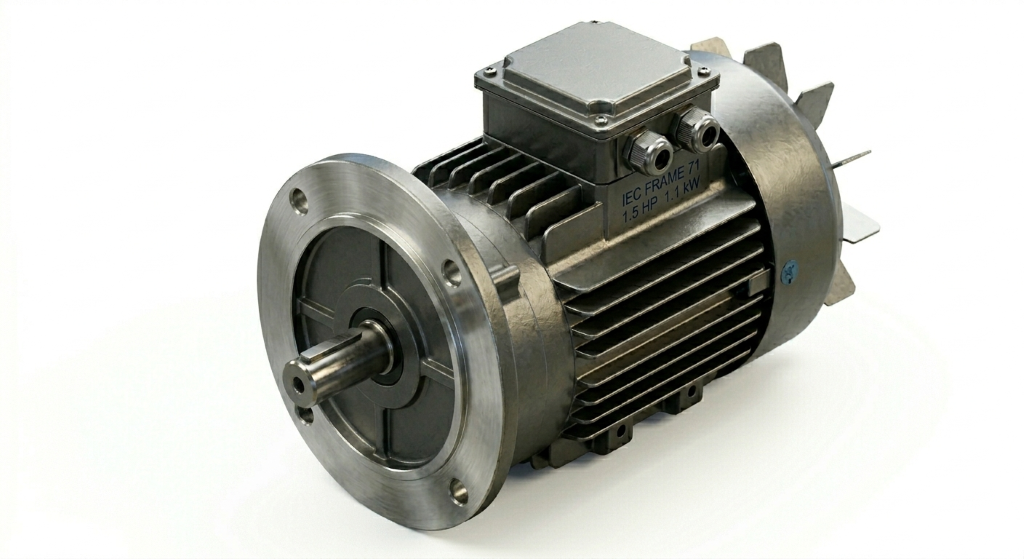

Available Motor Types
Motor Standards and Mounting Interfaces

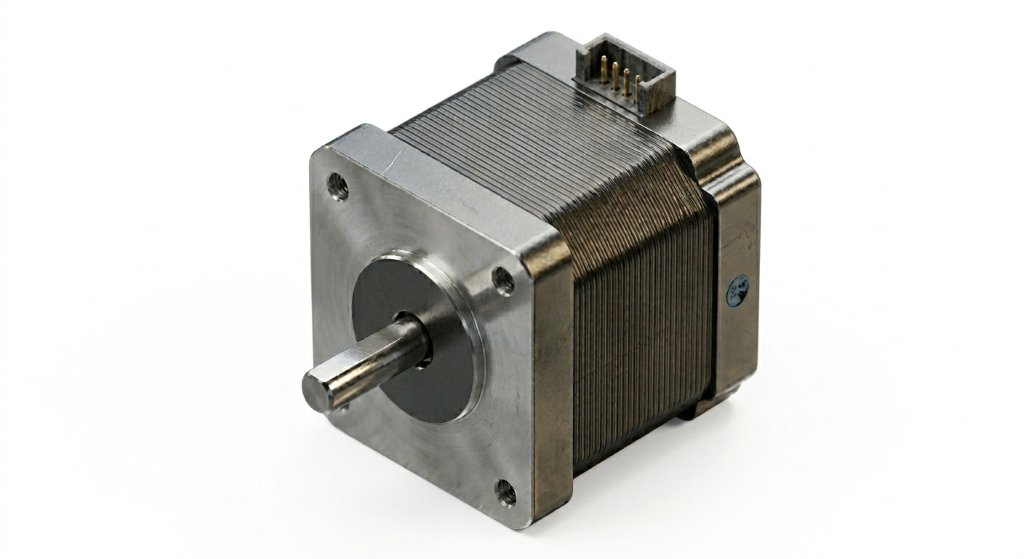

In industrial automation and robotics, motor mounting patterns are standardized to ensure interchangeability. The NEMA (National Electrical Manufacturers Association) standard defines the physical dimensions of stepper and servo motor faceplates, pilot diameters, and bolt hole spacing.
Design Tip: Pilot Alignment
Always use the pilot diameter (the raised circular section on the motor face) for precise axial alignment rather than relying solely on the mounting bolts. This reduces vibration and prevents premature coupler failure.
